TTK Fence

TTK Fence

Total Support from proposal
to design and construction

Features of TTK Fence

TTKのフェンスにはすき間があります

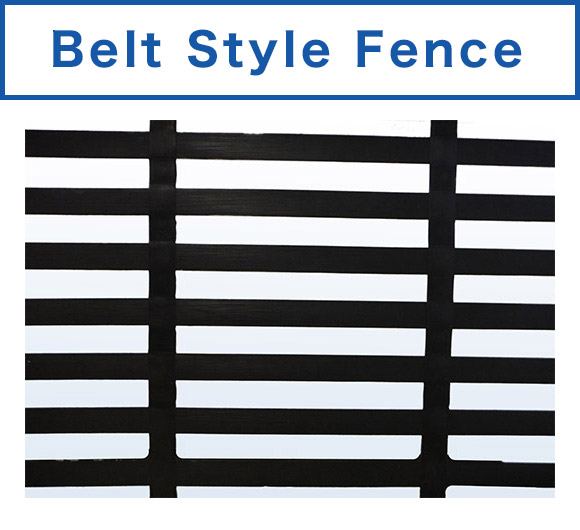

Belt Style Fence
Mesh size
Vertical Width 50mm
Space 500mm
Side Width 50mm
Space 50mm
Shielding rate 55%
Material
Polyester fiber
Polyethylene
Tensile
Strength
Roll direction
Approximately 4.0t/m
Durability
Durability confirmed for 30 years outdoor use samples

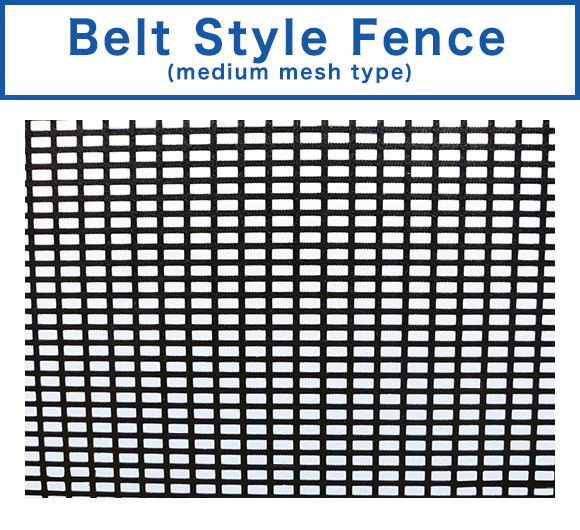

Belt Style Fence(medium
mesh type)
Mesh size
Vertical Width 9mm
Space 26mm
Side Width 8mm
Space 13mm
Shielding rate 55%
Material
Polyester fiber
Acrylic resin
Tensile
Strength
Roll direction
Approx 6.1t/m
Width direction
Approx. 2.9t/m
Durability
JIS K 7350 Sunshine
Accelerated deterioration test (1500h) conducted using a weather meter

Fence
Introduction
Video

Location of installation

User Voice

VoiceKyoshin Seiko Co., Ltd.
User VoiceKyoshin Seiko Co., Ltd.(Miyagi Prefecture)

Yutaka Tomizawa, representative director of Kyoshin Seiko LLC, a company that sells and maintains automobiles and agricultural machinery in Misato Town, Miyagi Prefecture, installed a TTK belt net fence as a windbreak at his home in 2011 and at his workplace in 2012.

Representative Director Yutaka Tomizawa

Representative Director Yutaka Tomizawa

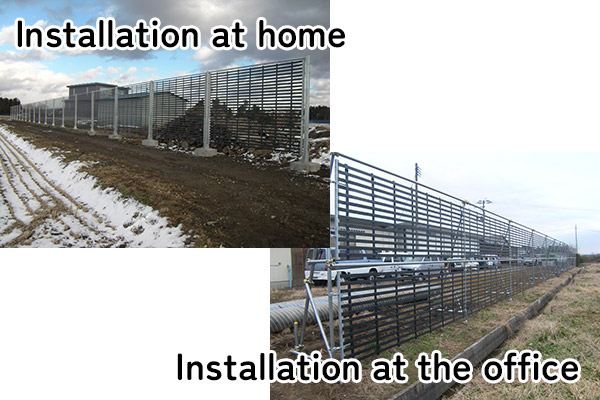

Home: one's home: Base plate type H=3.0m L=4.0m Length 72.0m
Office: Simple vertical type H=3.0m L=4.0m Extended 30.0m

Q1.What kind of problems did you have?

This area (Misato Town, Miyagi Prefecture) is one of the windiest areas in Miyagi Prefecture, and we have been particularly troubled by the western winds in winter.When we rebuilt our house, we had to remove the igune (trees planted around the house as a windbreak), so we needed to find a way to weaken the wind as much as possible.

Q2. How did you find out about TTK Belt Net Fence?

We saw the "TTK Belt Net Fence" installed on a nearby national highway, learned that such a fence existed, and did some research before finding it.We were also considering a steel fence, but ultimately decided on the TTK Belt Net Fence, which also doubles as a fence for the property boundary.We had some concerns about durability and effectiveness, but the fact that it has already been used on roads all over the place was the deciding factor for us to introduce it.

Q3.Please tell us the effects you have seen since implementing this.

It's hard to tell the effect on a normal day, but when you compare it to an area without a fence on a windy day, you can really see how different it makes the fence.

Q4.If you have any other opinions or comments, please let us know.

A few years ago, when I was building a warehouse at my house, I removed part of the fence to carry it in and to carry out the work, and I found that it was light and easy to remove and assemble.Also, although it has been more than 10 years since it was installed, there is no sign of deterioration, so it seems like it can still be used.

Misato Town is located in the Osaki Plain in northern Miyagi Prefecture. The mountains on the west side of the plain are lower in elevation than the surrounding areas, making them a wind passageway and resulting in an area where strong western winds blow.
S Construction Company
S Construction Company (Miyagi Prefecture)
Fence type: Easy installation type H=0.9m
Setting Extension: 600mSetting
Purpose: * Prevents entry to offices and work sites.
* Installation of the fence is difficult when moving around the site every day, but this fence is lightweight and easy to move, so we have adopted it and will purchase more.

Q1.What kind of problems did you have?

When setting up a site office for road construction work, etc., a boundary fence is installed to prevent outsiders from entering. However, installing boundary fences is very hard work and felt like a big burden.

Q2.How did you find out about TTK Belt Net Fence?

We were introduced to this by a building materials trading company.We had experience installing TTK belt-type net fences as a snow prevention measure for roads, but we were surprised to learn that they can also be used as boundary fences.Also, we decided to install them again this time because they were installed in one stop, with reduced effort and cost.

Q3.What was your impression of the TTK belt-type net fence?

Compared to the boundary fences we had been using up until now, we felt that this fence was extremely light and easy to handle.In addition, it is durable and weather resistant, so it is resistant to rust and dirt, and has high tensile strength, so it is not easily stretched.We thought that its strength and longevity would lead to cost reductions and environmental conservation.

Q4.Please tell us the effects you have seen since installing the equipment.

After the installation, it became easier to install and remove, reducing the burden on employees.It is also helpful that it does not require maintenance even when installed for a long period of time because it is resistant to rust and dirt.It does not feel oppressive and does not interfere with the scenery, so I feel that the impact on the neighborhood is also reduced.

Fukushima Marine Science Museum
Fukushima Marine Science Museum (Fukushima Prefecture)
Fence type: Existing replacement typeSetting
Extension: 56.2m

Q1.What kind of problems did you have?

At the aquarium, divers sometimes perform diving work. However, when strong winds blow on their wet bodies after diving, it becomes unbearably cold, which is a problem for the divers.In addition, winds sometimes blow through parts of the viewing corridor, and sometimes the winds are so strong that visitors cannot see the aquarium, which has led to complaints.

Q2.What was your impression of the TTK belt-type net fence?

Since this is an aquarium, we wanted to avoid anything that would spoil the scenery or interfere with the view.In that respect, we liked the TTK belt net fence because it has excellent transparency and has little effect on the scenery or the view.We were also surprised at how effective it was at blocking wind, more than we had expected.

Q3.Please tell us the effects you have seen since installing the equipment.

The strong windbreak has reduced the force of the divers, and work efficiency has improved.We have also seen a decrease in complaints from customers that the wind was too strong to view the exhibit.We were forced to remove some of the trees because the leaves had not fallen, which was unexpected, but we feel that the strong windbreak provides.

Case Studies

Otaru Civil Engineering Office
Otaru Civil Engineering Office (Hokkaido)
Construction period: 2004
Type: Snow fence
Fence type: Bridge mounting type H=2.5m × L=4.0m
Setting extension: 416.7m
Setting purpose: Installed to prevent snow accumulation during snowstorms and reduce visibility problems.When retrofitting a structure to a normal bridge, weight is an issue and it is difficult to use steel structures, but the lightweight design was the deciding factor in this project.
S Industry
S Industry (Miyagi)
Construction period: 2013
Type: Wind screen
Fence type: Foundation type H=3.51m × L=4.0m
Setting extension: 12.0m
Setting purpose: Wind protection measures for truck terminals.Installation can be completed in a short time using precast foundations.When not in use, the fence can be removed and the foundations can be moved.
T Support Center
T Support Center (Tokyo)
Construction period: 2013
Type: Privacy fence
Fence type: Base plate type H=2.2m × L=3.2m, 4.0m
Setting extension: 55.0m
Setting purpose: Adopted as a replacement for aluminum louvers to hide equipment on the roof of a building.Installation can be completed in a short period of time (one day).
